Delivering the largest, most efficient wind turbines directly to the wind farm

WindRunner radically expands the reach of onshore wind energy

WindRunner is the world’s largest aircraft, specialized to deliver the largest onshore wind turbines

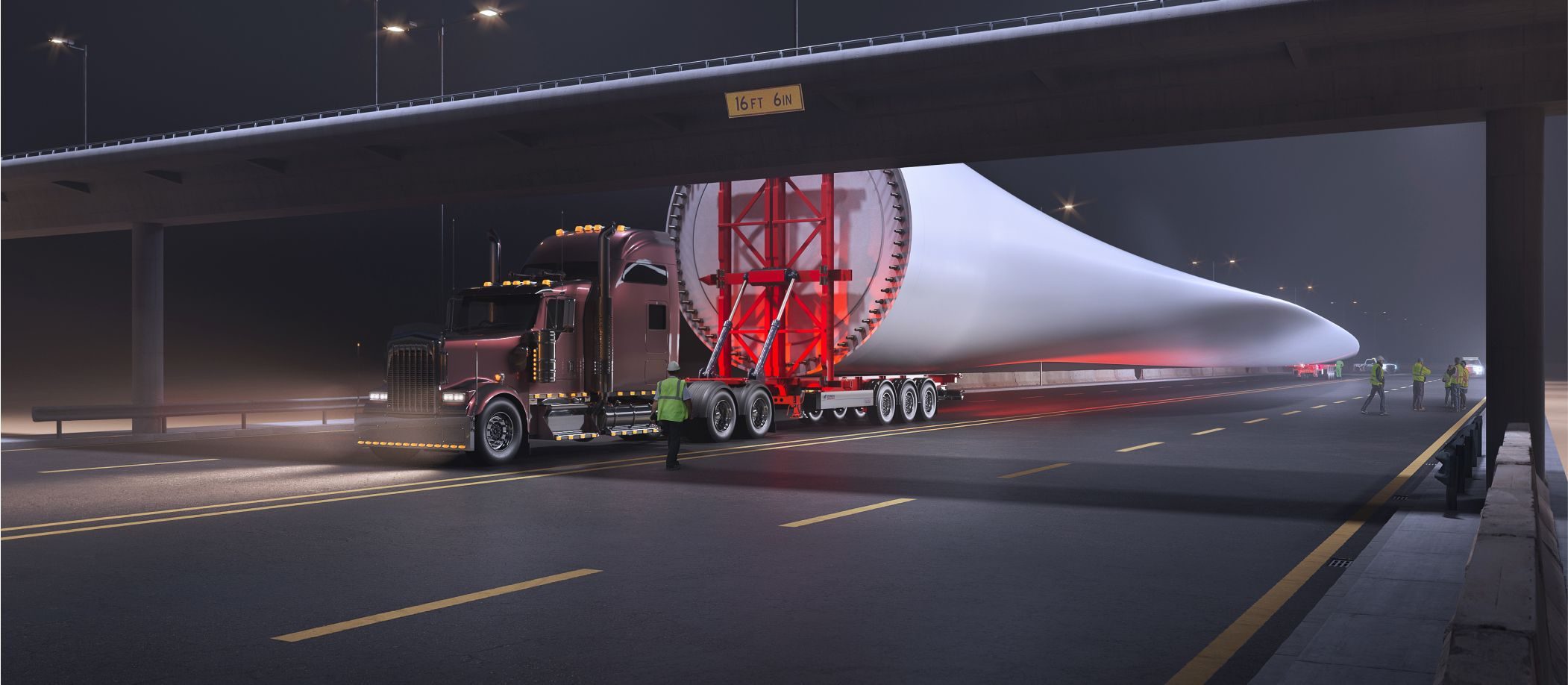

TODAY'S ROADS CAN BARELY SUPPORT BLADE LENGTHS OF

70m
230 FT

FUTURE BLADE LENGTHS ARE LIKELY TO BE IN EXCESS OF

100m
330 FT

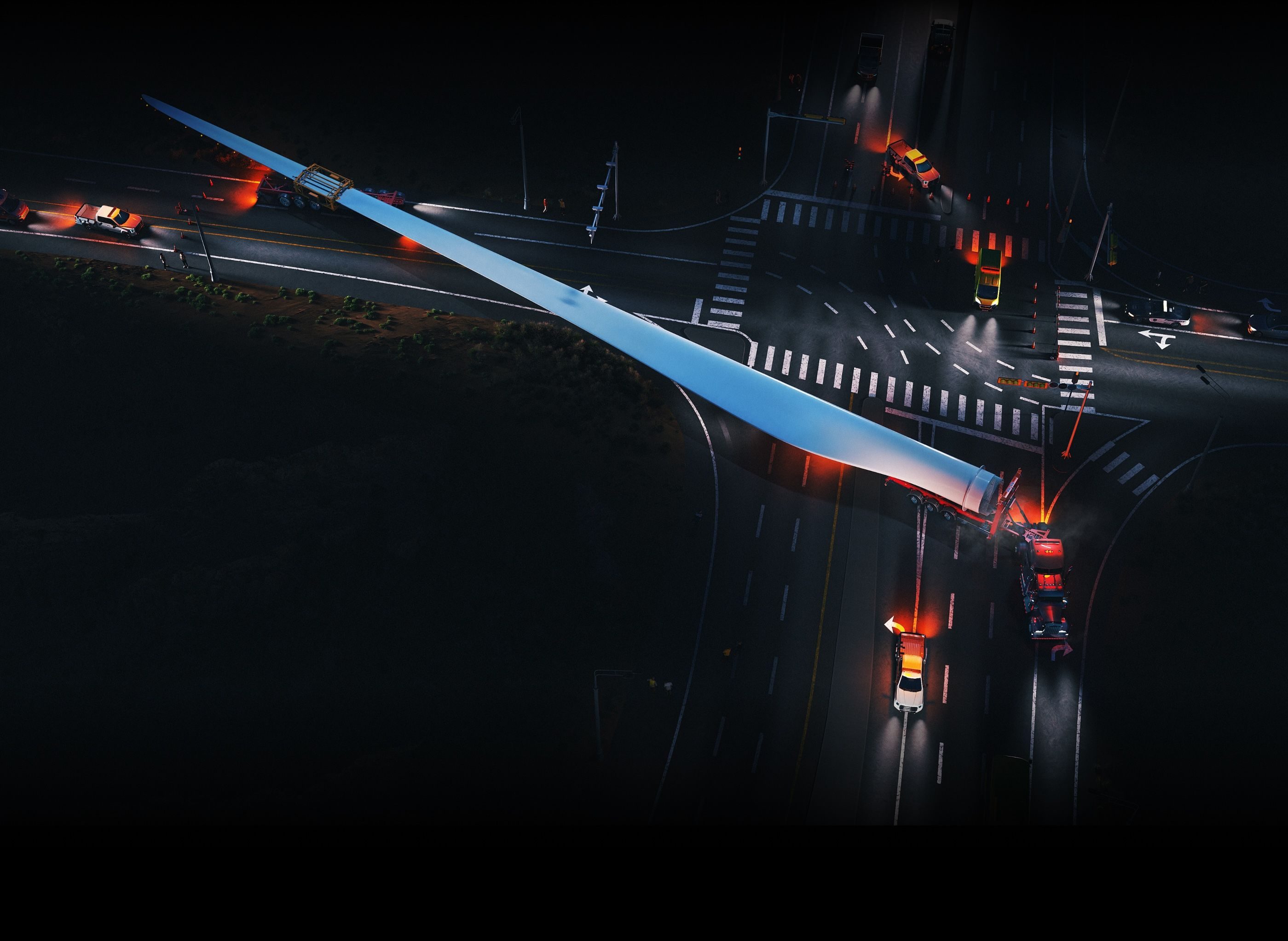

100m+ blades are not feasible to move on current infrastructure
Today’s largest wind turbines and the even larger ones of the future cannot be transported to prime onshore wind farms via ground infrastructure
WindRunner
WindRunner
Enabling a new category of energy production
WindRunner delivers GigaWind, the most powerful wind turbines ever deployed onshore

WINDRUNNER COMBINES THE WORLD'S LARGEST PAYLOAD BAY WITH THE ABILITY TO LAND ON SEMI-PREPARED AIRSTRIPS AT WIND FARM SITES

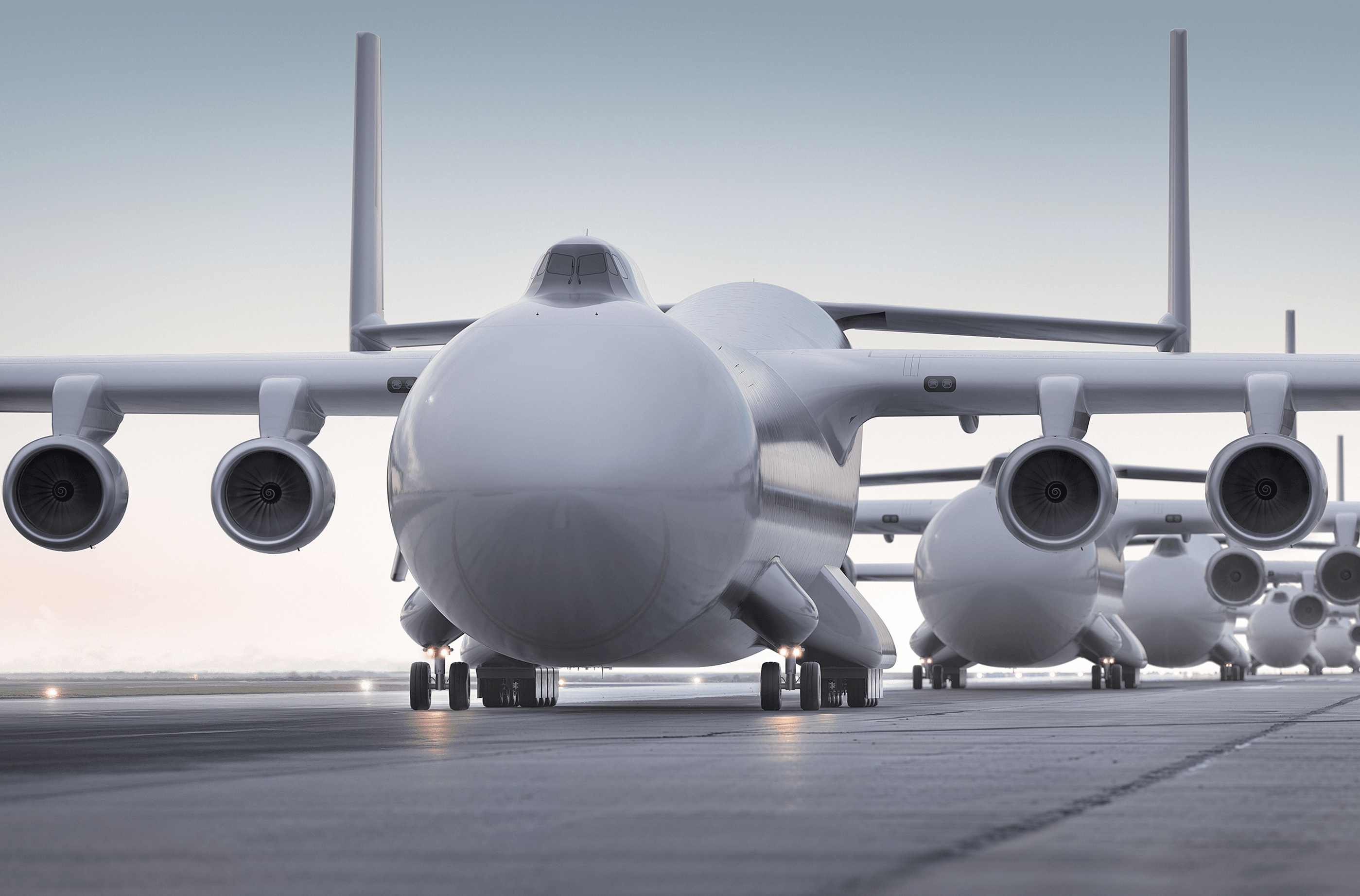

Our global fleet will operate from regional hubs where blades are imported or manufactured

WindRunner

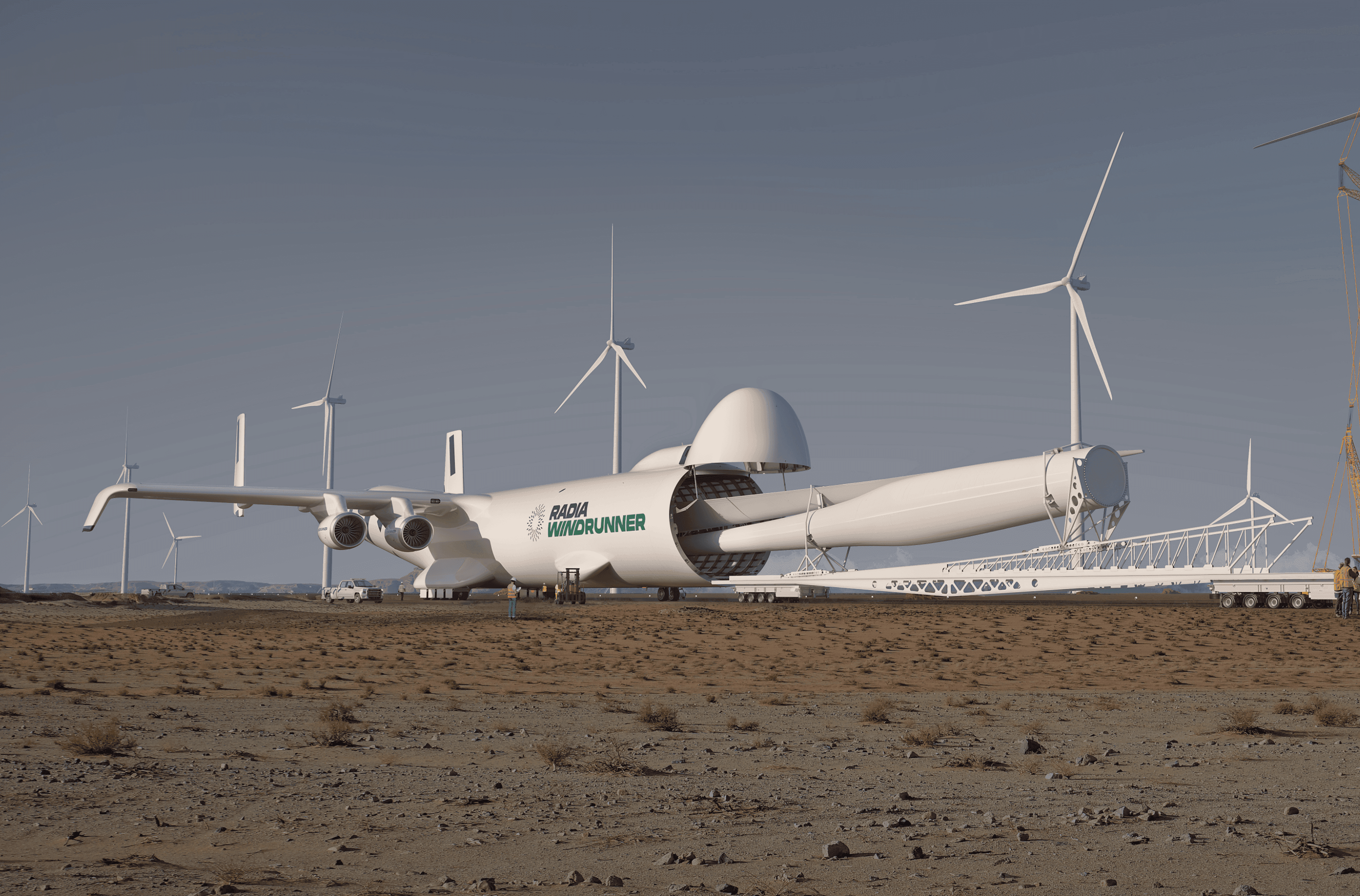

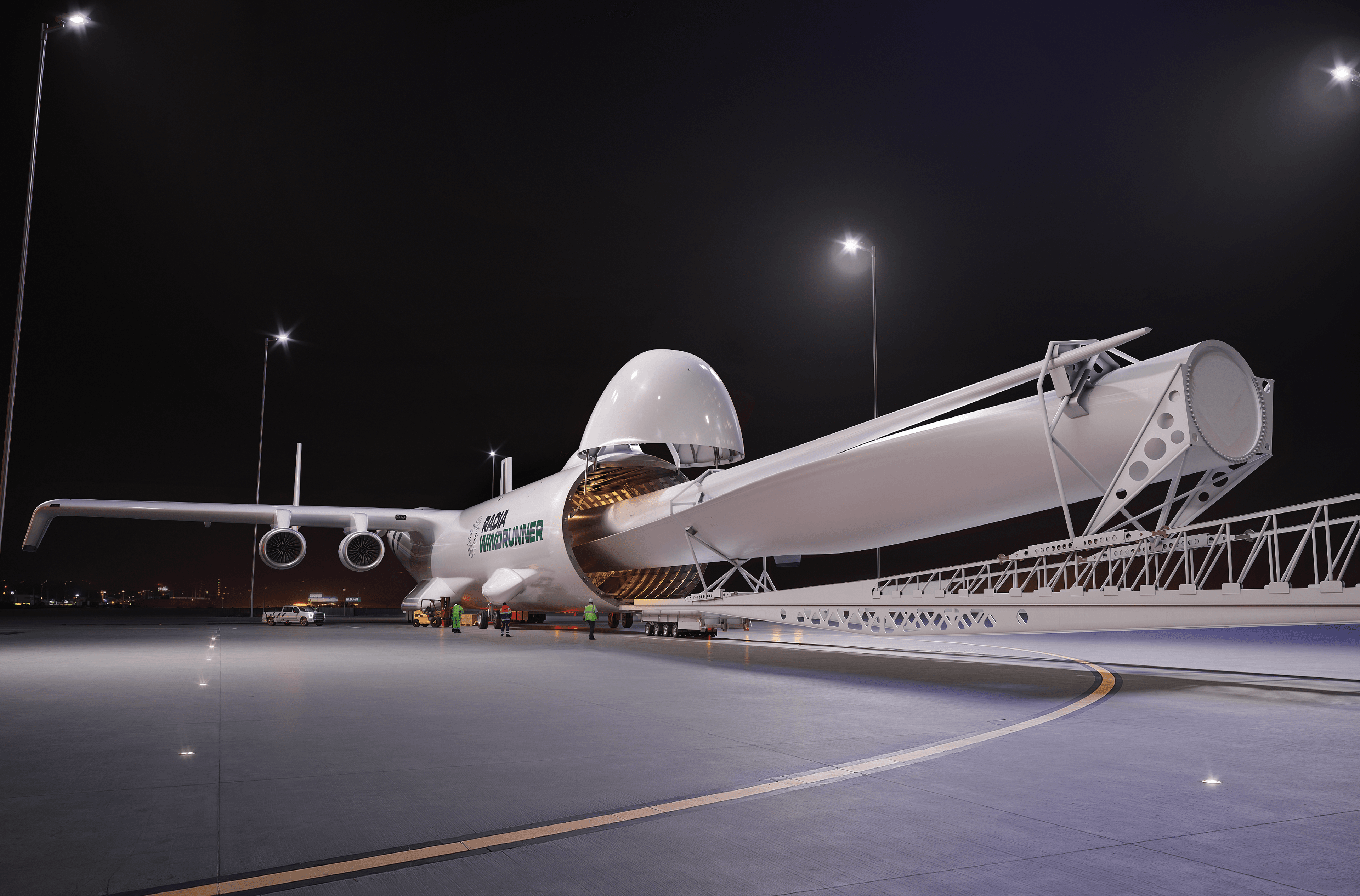

WindRunner with nose open, loading two giant turbine blades
4AM

Loading Blades into WindRunner

Blades are loaded through WindRunner's nose cargo door using our patented system, reducing load times and ensuring proper placement

7AM

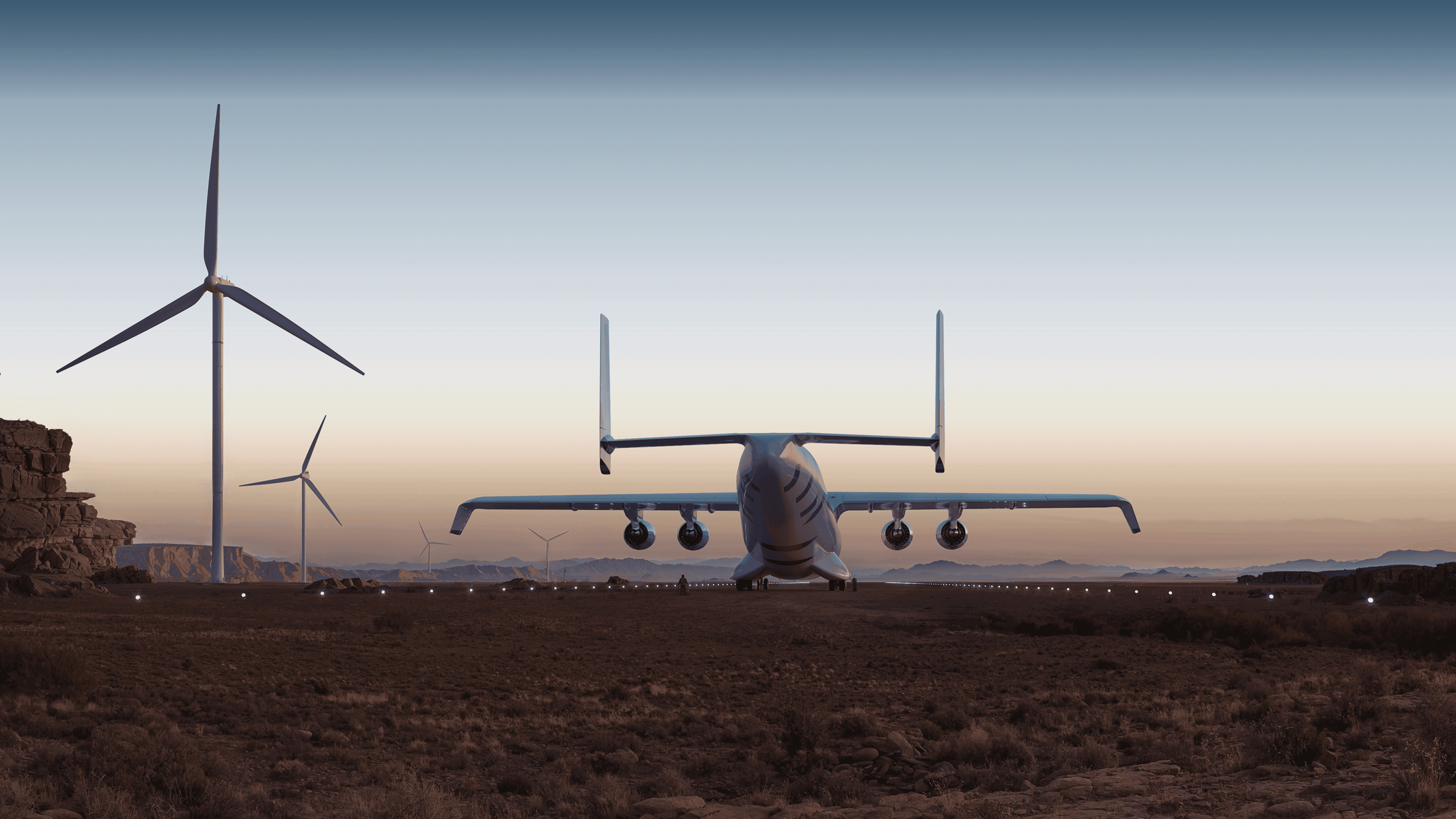

Taxi & Takeoff

WindRunner operates from regional hubs, delivering the wind components wherever they are needed

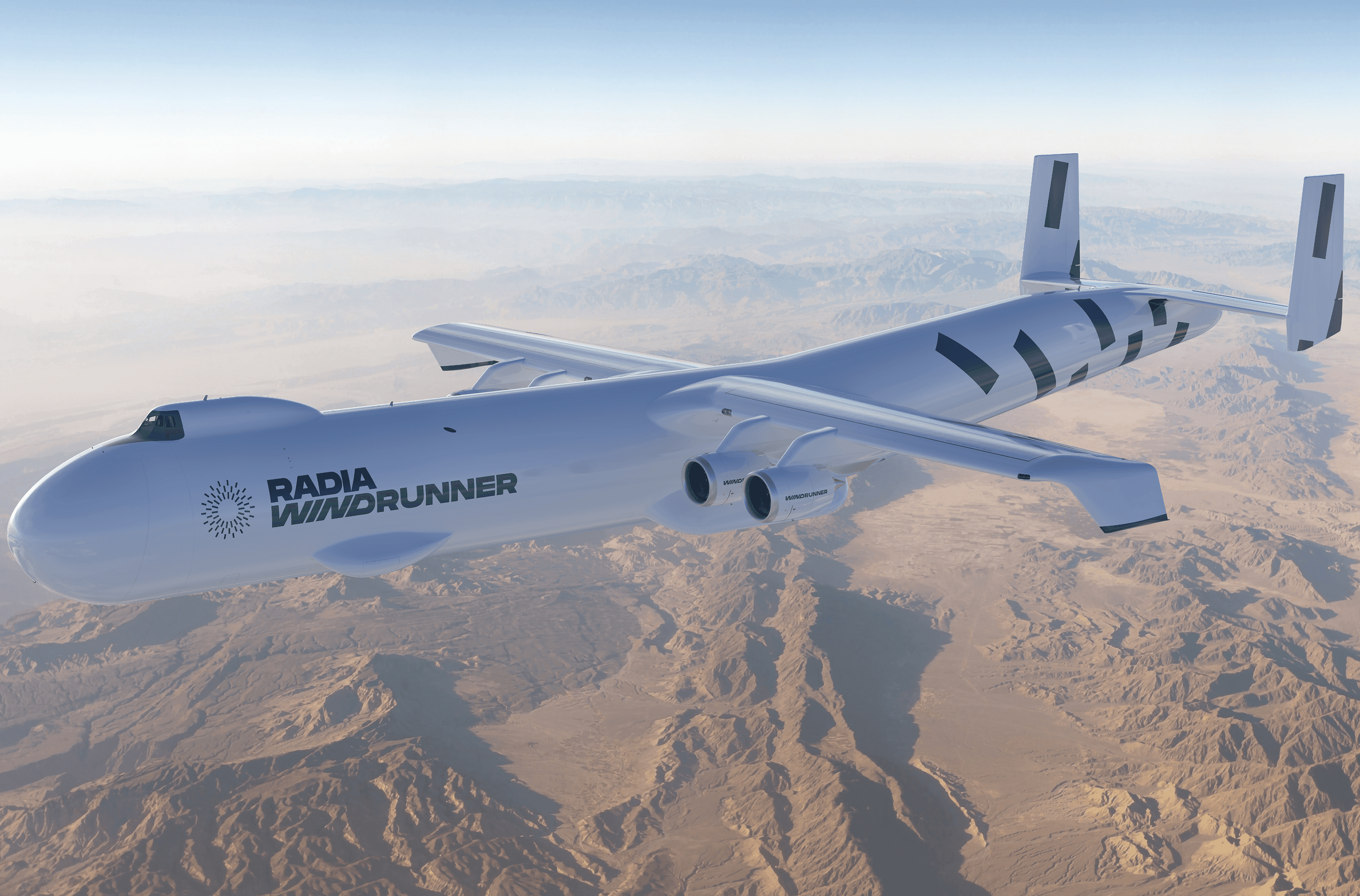

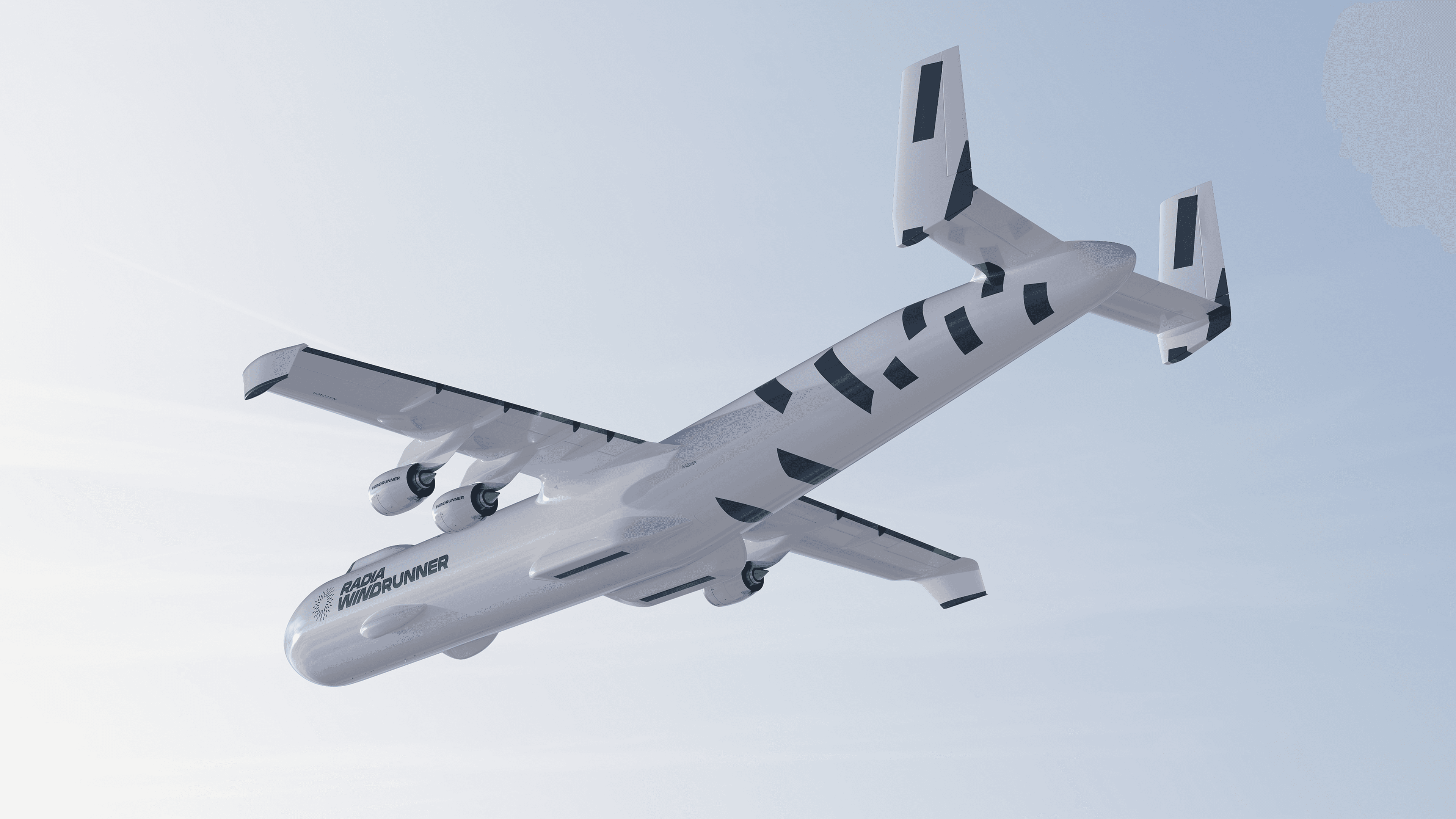

WindRunner in flight
9AM

Cruising Altitude

WindRunner flies directly to the destination, up to 1,240 miles (2,000km) away from the hub at an altitude up to 41,000 feet

10AM

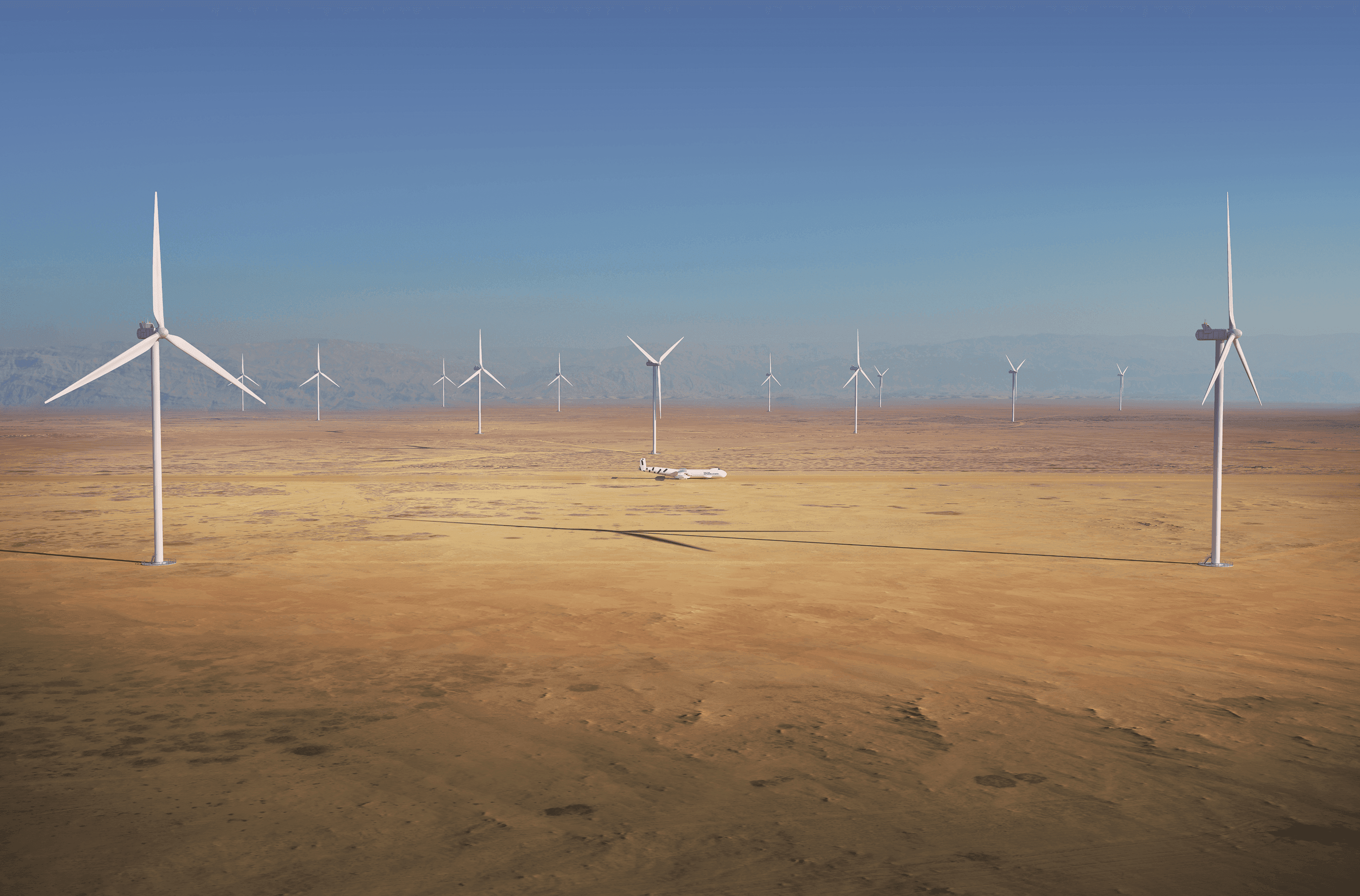

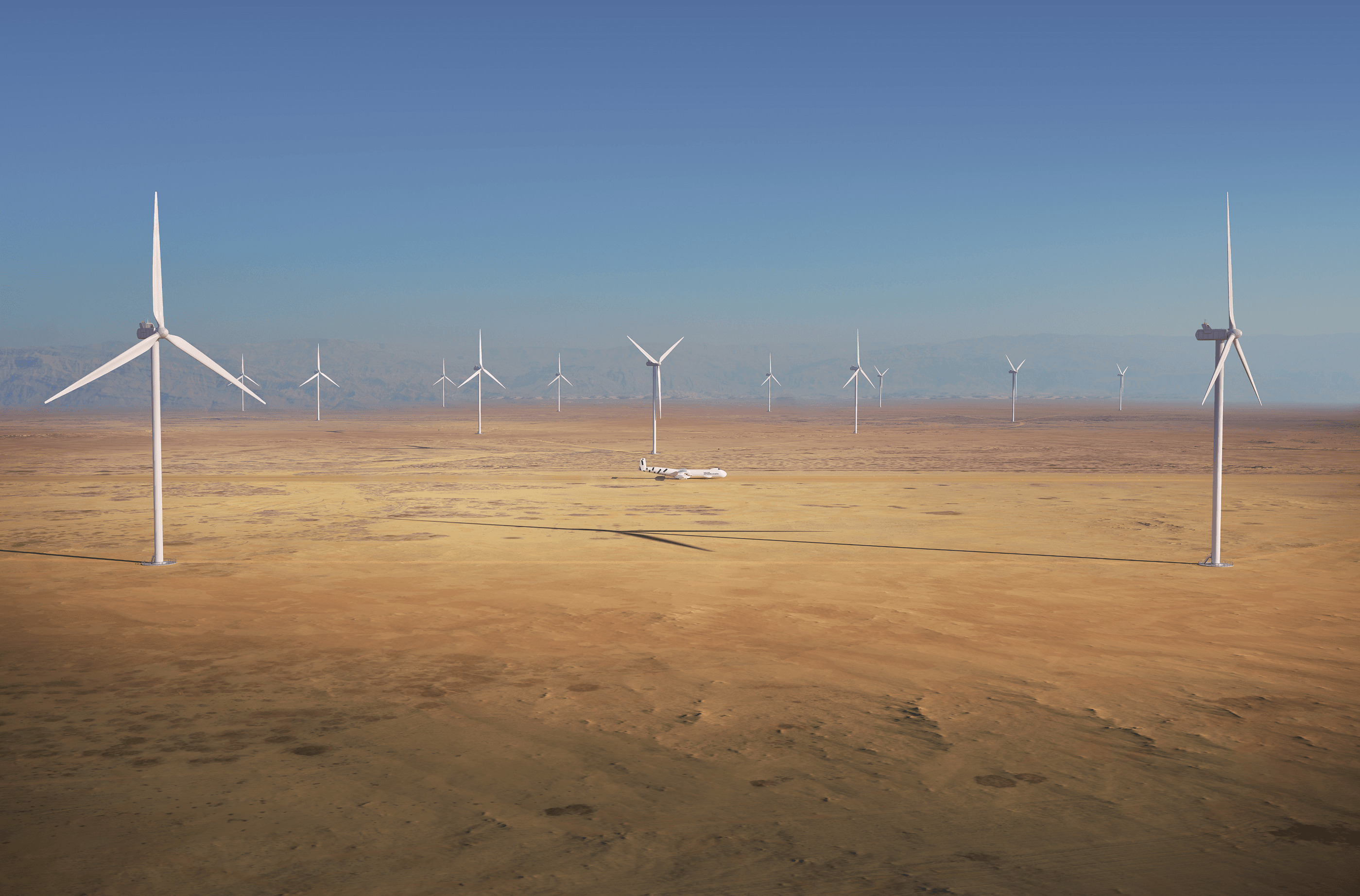

Landing on Rough Terrain

WindRunner can land on semi-prepared airstrips as short as 6,000 feet (1,800m), something no other large commercial aircraft can achieve

11AM

Unloading

Blades are unloaded the way they were loaded –through the front cargo door, at ground level, directly to onsite ground transport

2PM

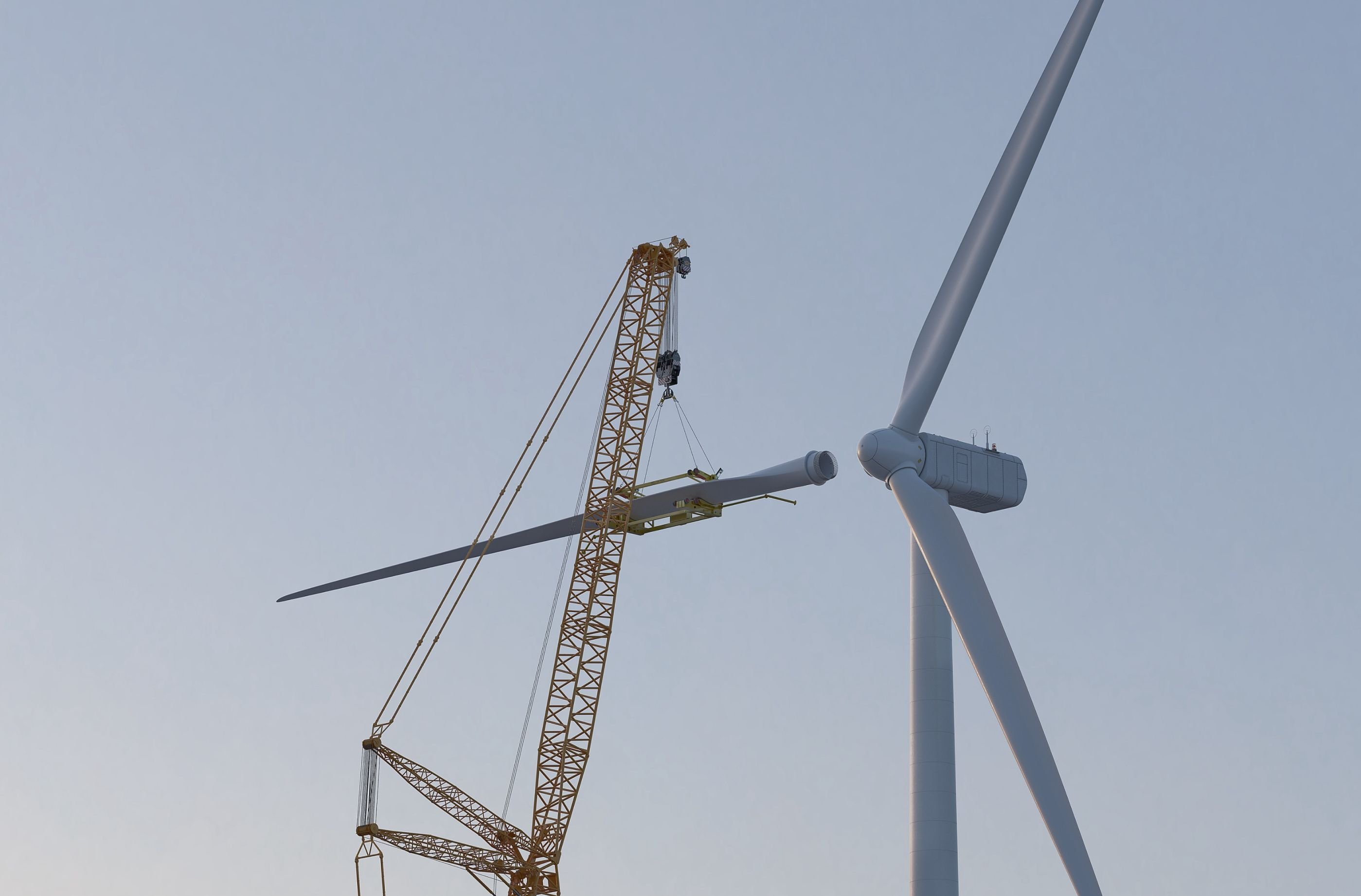

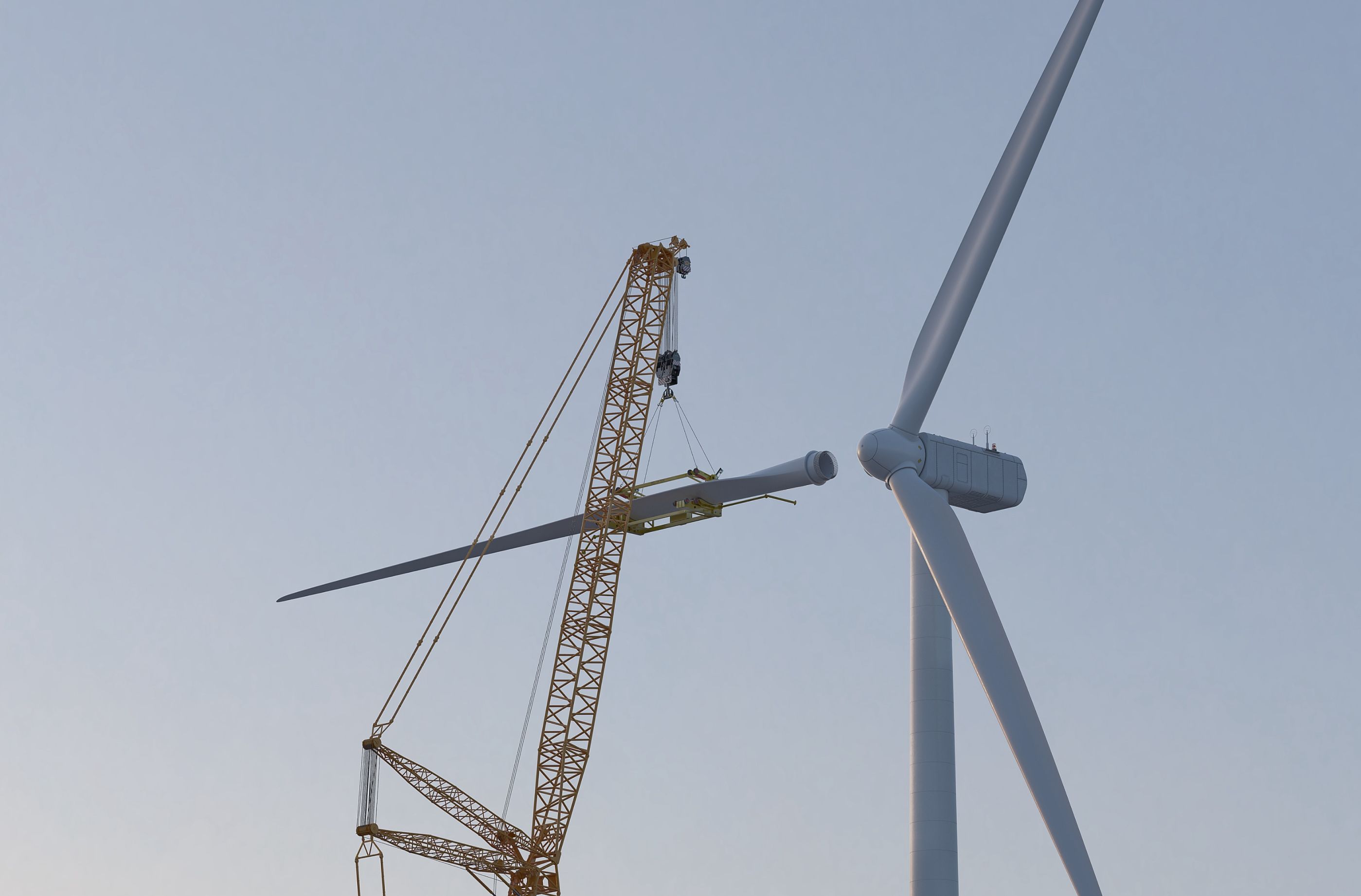

Turbine Construction

WindRunner deploys blades up to 105m long in almost any location

WindRunner will change the green energy landscape forever

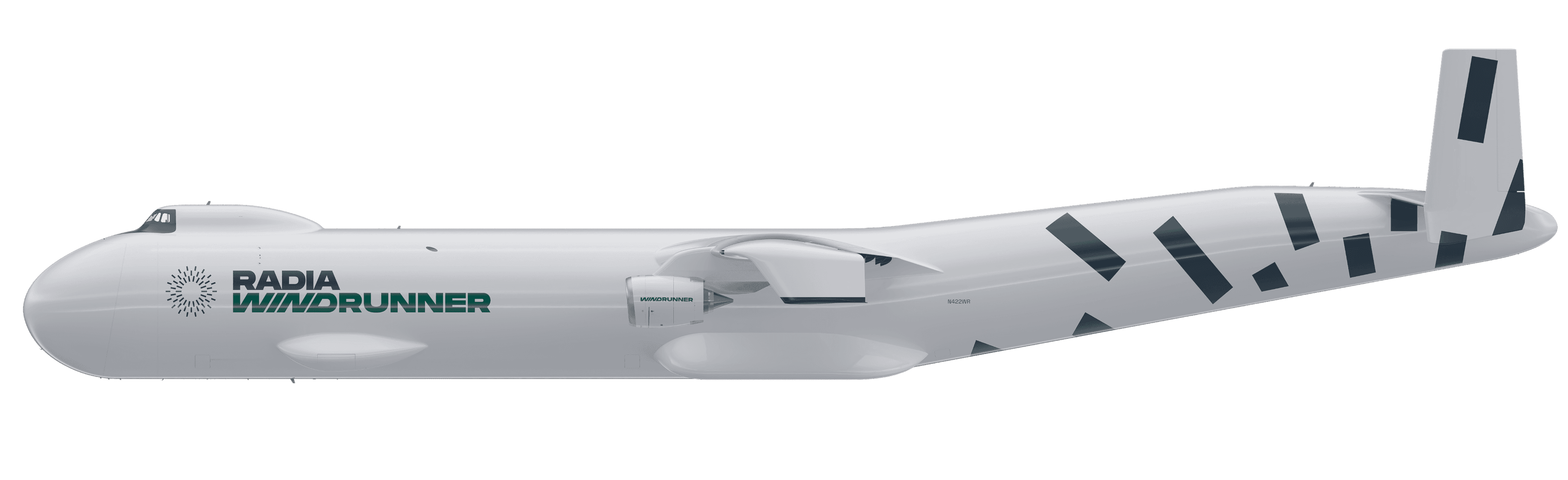

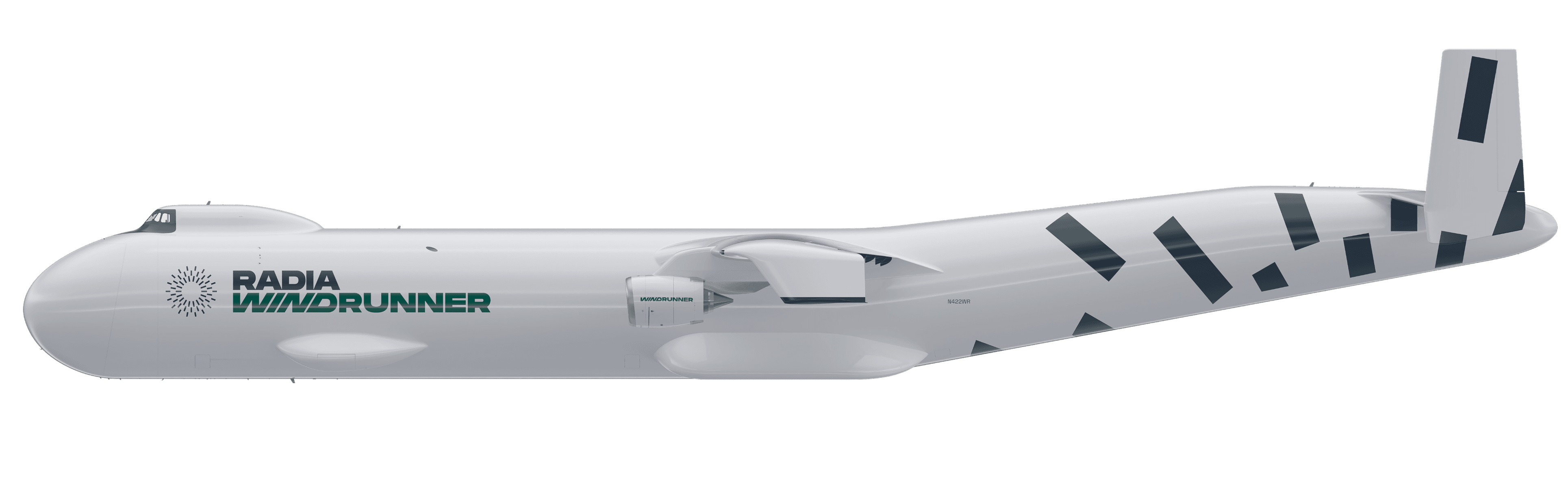

Radia Windrunner

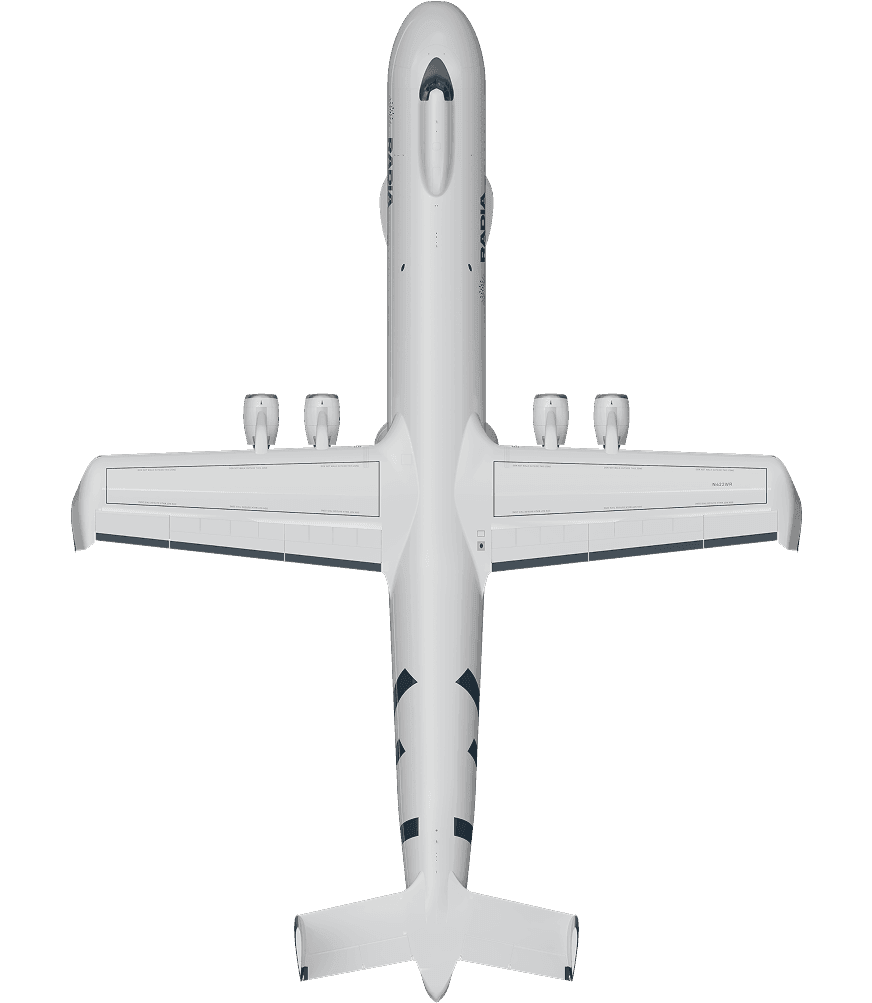

Specifications

105m blade shown
slider
Dimensions
Length
108 m / 356 ft
Height
24 m / 79 ft
Wingspan
80 m / 261 ft
Maximum Payload Length
105 m / 344 ft
Maximum Payload Height
7.3 m / 24 ft
Maximum Payload Width
7.3 m / 24 ft
Performance
Maximum Payload Weight
160,000 lbs / 72,575 kg
Runway Length
1,800 m / 6,000 ft
Cruise Speed
Mach 0.6
Ceiling
12,525 m / 41,000 ft
Range (Max. Payload)
2,000 km / 1,200 mi

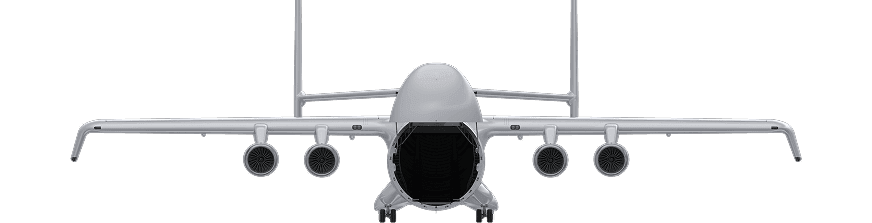

Aircraft Comparison

Aircraft
WindRunner™
Aircraft

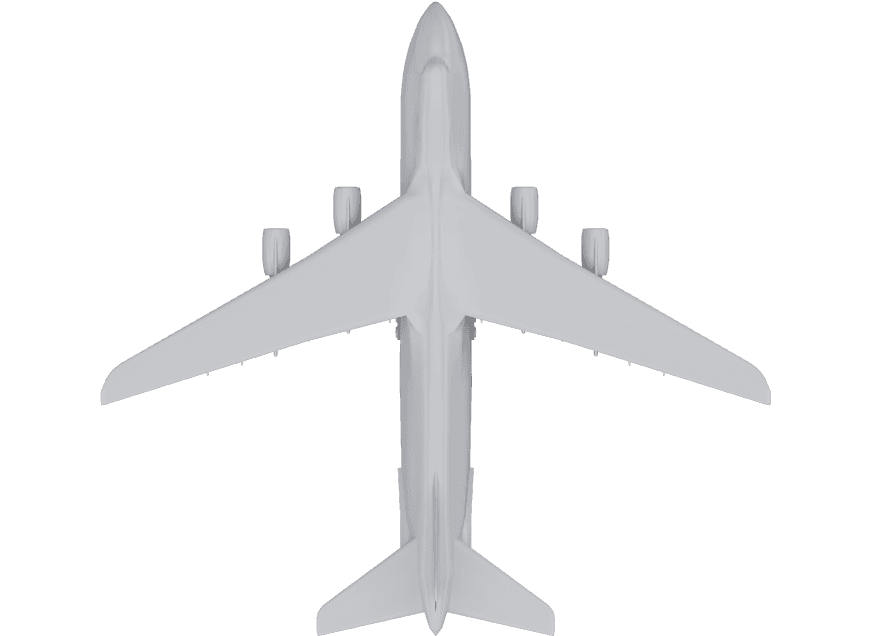

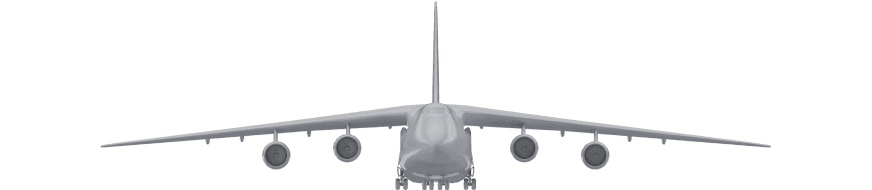

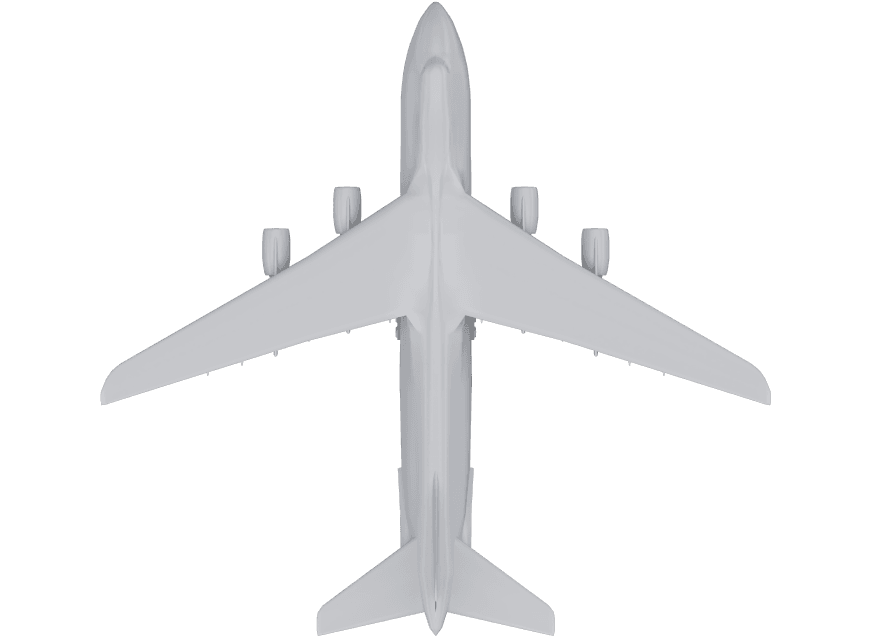

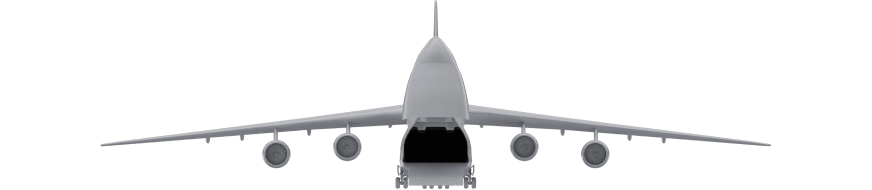

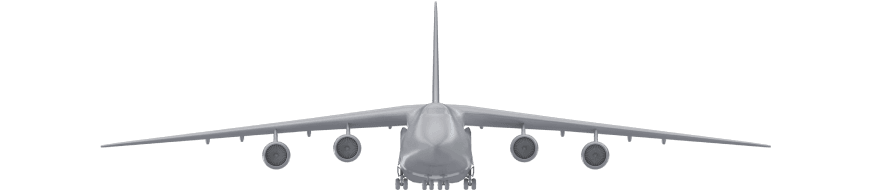

Antonov An-124
Aircraft

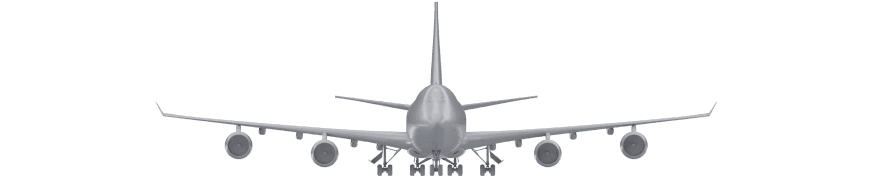

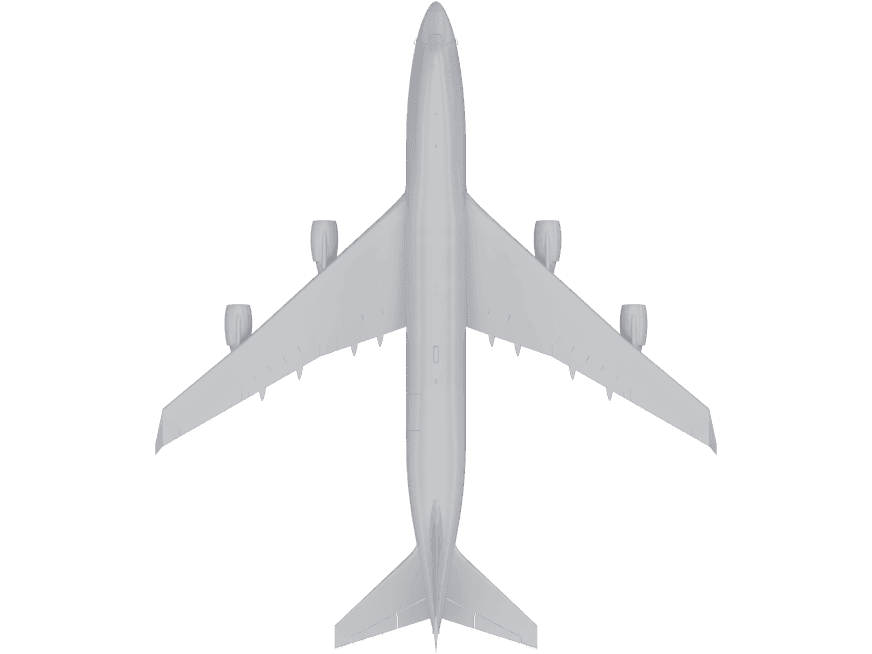

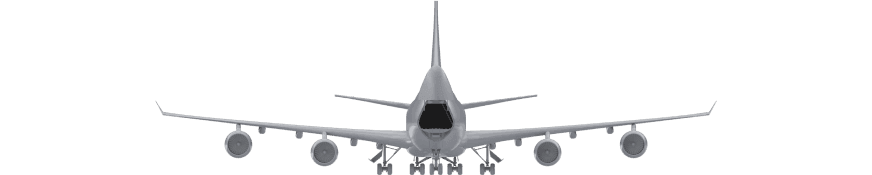

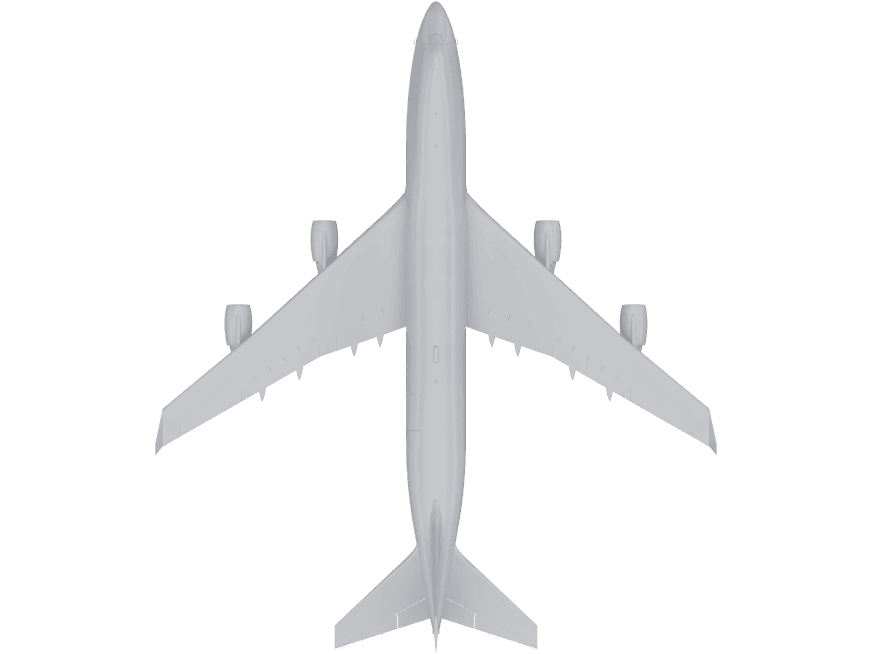

Boeing 747-400

Payload Bay Capacity*

Volume
7,702 m³ / 272,000 ft³
Volume
1,160 m³ / 41,000 ft³
Volume
610 m³ / 21,600 ft³

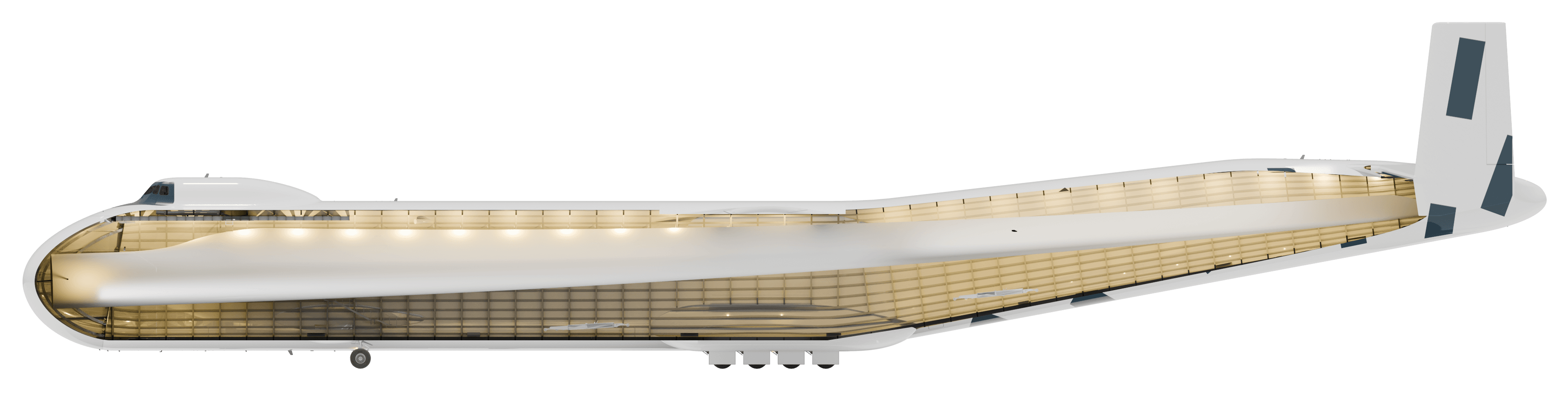

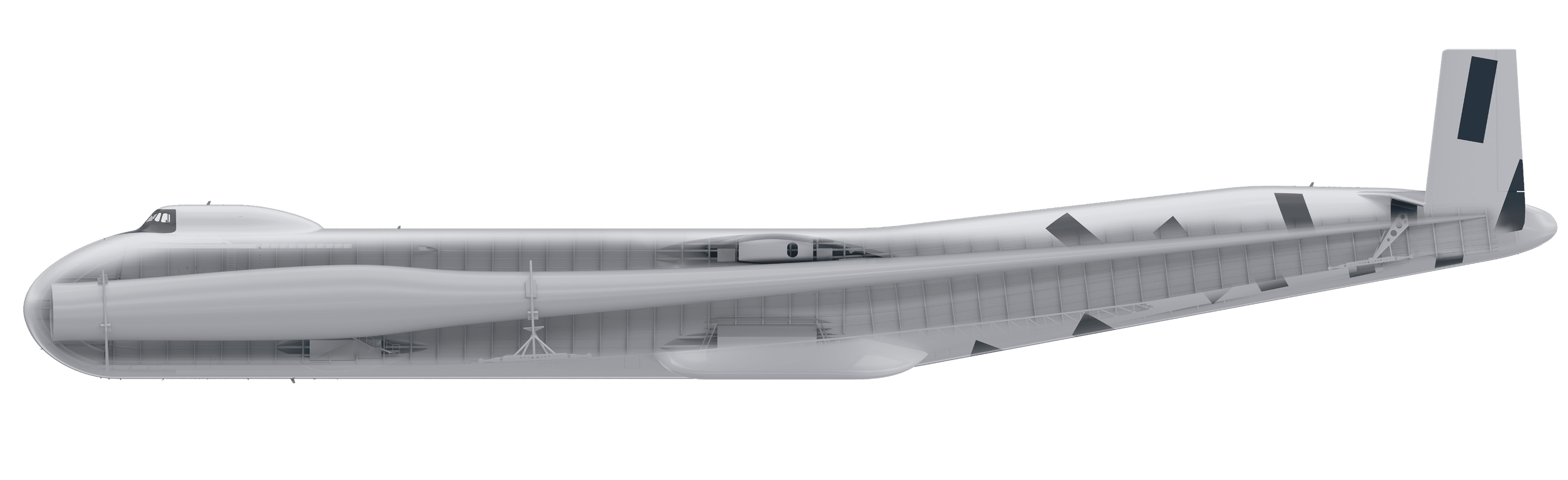

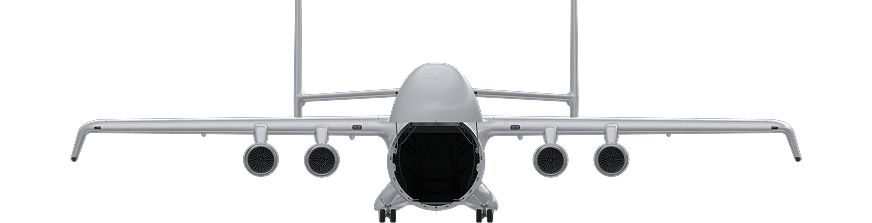

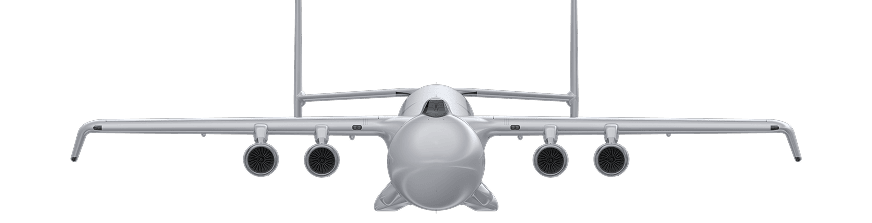

*Aircraft displayed with cargo doors closed (top) and cargo doors open (bottom)
